ID # | Detailed Description | Type | NFPA 130 Category | EN 45545-2 Requirement | NFPA 130 (PASS/FAIL) | EN 45545-2 (PASS/FAIL) | PASS Both (YES/NO) | Testing at Certified Lab |
---|---|---|---|---|---|---|---|---|
1 | Acoustic Insulation | Foam Insulation | Insulation | R1 | Pass | NA | No | Yes |
2 | Articulation Bellows | Bellows | Bellows | R7 | Pass | NA | No | Yes |
3 | Articulation Bellows - reinforced elastomeric compound | Bellows | Bellows | R7 | Pass | NA | No | Yes |
4 | Backshell, Post Shroud, Armrest - FRP with Tedlar | FRP | Seat | R6 | Pass | NA | No | Yes |
5 | Battery case - Polysulfone | Thermoplastic | Boxes | R10 | Pass | NA | No | Yes |
6 | Battery case - Polysulfone | Thermoplastic | Boxes | R10 | Pass | NA | No | Yes |
7 | Battery Cell Container - Polysulfone | Thermoplastic | Boxes | R10 | Pass | NA | No | Yes |
8 | Bellows - FR Bellows | Bellows | Bellows | R7 | NA | NA | No | Yes |
9 | Cab Console - FRP + Tedlar | FRP | General | R1 | Pass | NA | No | Yes |
10 | Cab-Low Ceiling+Crew Locker Panel - Aluminum Honeycomb Core Panel | Sandwich | General | R1 | Pass | NA | No | Yes |
11 | Ceiling Ducting - Fiberglass Coated Silicone | Sandwich | Ducting | R1 | Pass | NA | No | Yes |
12 | Ceiling Panel - Honeycomb Core Ceiling Panel Composite | Sandwich | General | R1 | Pass | NA | No | Yes |
13 | Ceiling panels - Melamine aluminum honeycomb | Sandwich | General | R1 | Pass | NA | No | Yes |
14 | Composite - Balsa with Phenolic Skin | Sandwich | General | R1 | NA | NA | No | Yes |
15 | Composite - GRP | FRP | General | R1 | NA | NA | No | Yes |
16 | Composite Laminate Material | FRP | General | R1 | Fail | NA | No | Yes |
17 | Composite Panel - Honeycomb Core Composite Panel | Sandwich | General | R1 | Pass | NA | No | Yes |
18 | Counter Splash Guard/Top+Basin - FRP Fiberglass Vinyl Ester | FRP | Toilet | R2 | Pass | NA | No | Yes |
19 | Destination Sign Curtain | FRP | General | R1 | NA | NA | No | Yes |
20 | Duct Liner | Fiber Insulation | Insulation | R1 | Fail | NA | No | Yes |
21 | Ducting | Sandwich | Ducting | R1 | Pass | NA | No | Yes |
22 | Ducting | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
23 | Fiberglass Composite | FRP | Seat | R6 | Pass | NA | No | Yes |
24 | Fiberglass Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
25 | Flexible Air Duct Material | Sandwich | Ducting | R1 | NA | NA | No | Yes |
26 | Florescent Light Diffuser Lens Bathroom | Thermoplastic | Light Diffuser | R4 | Pass | NA | No | Yes |
27 | FRP - Composite 3mm | FRP | General | R1 | NA | NA | No | Yes |
28 | FRP - Polyester Resin | FRP | General | R1 | Pass | NA | No | Yes |
29 | FRP - FRP Samples | FRP | General | R1 | Pass | NA | No | Yes |
30 | FRP - 1/8" Nominal Thick | FRP | General | R1 | Pass | NA | No | Yes |
31 | FRP | FRP | General | R1 | NA | NA | No | Yes |
32 | FRP & Gelcoat | Sandwich | General | R1 | Pass | NA | No | Yes |
33 | FRP Laminate - Console Assembly | FRP | General | R1 | Pass | NA | No | Yes |
34 | FRP Laminate | FRP | General | R1 | Pass | NA | No | Yes |
35 | FRP Laminate | FRP | General | R1 | Pass | NA | No | Yes |
36 | FRP Laminate - Passenger Seat Shell | FRP | General | R1 | Pass | NA | No | Yes |
37 | FRP Laminate | FRP | General | R1 | Pass | NA | No | Yes |
38 | FRP Laminate Composite | FRP | General | R1 | NA | NA | No | Yes |
39 | FRP Laminate Material - 1/4" FRP with Gelcoat | FRP | General | R1 | Pass | NA | No | Yes |
40 | FRP Laminate Material - 1/8" FRP with Gelcoat | FRP | General | R1 | Pass | NA | No | Yes |
41 | FRP Laminate Material - FRP with Gelcoat | FRP | General | R1 | Pass | NA | No | Yes |
42 | FRP Material | FRP | General | R1 | NA | NA | No | Yes |
43 | FRP Window Mask Laminate | FRP | General | R1 | Pass | NA | No | Yes |
44 | FRP, Gelcoat, & Foam | Sandwich | General | R1 | Pass | NA | No | Yes |
45 | Heater Insulation (HVAC) | Fiber Insulation | Insulation | R1 | NA | NA | No | Yes |
46 | Honeycomb Panel - 3/8" Aluminum Honeycomb Sandwich Panel | Sandwich | General | R1 | Pass | NA | No | Yes |
47 | Insulated Flexible duct | Sandwich | Ducting | R1 | Pass | NA | No | Yes |
48 | Insulation - Insulation 6mm | Foam Insulation | Insulation | R1 | NA | NA | No | Yes |
49 | Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
50 | Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
51 | Insulation | Fiber Insulation | Insulation | R1 | NA | NA | No | Yes |
52 | Insulation | Fiber Insulation | Insulation | R1 | NA | NA | No | Yes |
53 | Insulation - Aluminum Faced | Sandwich | Insulation | R1 | NA | NA | No | Yes |
54 | Insulation -foam Insulation | Foam Insulation | Insulation | R1 | Pass | NA | No | Yes |
55 | Insulation - 1" Fiberglass Insulation Board | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
56 | Insulation | Foam Insulation | Insulation | R1 | Pass | NA | No | Yes |
57 | Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
58 | Insulation | Foam Insulation | Insulation | R1 | Pass | NA | No | Yes |
59 | Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
60 | Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
61 | Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
62 | Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
63 | Insulation | Fiber Insulation | Insulation | R1 | NA | NA | No | Yes |
64 | Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
65 | Insulation - tube/sheet 1" | Foam Insulation | Insulation | R1 | Pass | NA | No | Yes |
66 | Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
67 | Insulation | Fiber Insulation | Insulation | R1 | NA | NA | No | Yes |
68 | Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
69 | Interior lining (phone cabinet) - FRP composite 4.5mm | FRP | General | R1 | Pass | NA | No | Yes |
70 | Interior linings | Thermoplastic | General | R1 | Pass | NA | No | Yes |
71 | Interior linings - 12.5mm mel/plymetal | Sandwich | General | R1 | Pass | NA | No | Yes |
72 | Interior linings - moldings | Thermoplastic | General | R1 | Pass | NA | No | Yes |
73 | Interior linings - 3/8 alum. H/C panels | Sandwich | General | R1 | Pass | NA | No | Yes |
74 | Interior linings - FRP directional reinf 1/8" | FRP | General | R1 | Pass | NA | No | Yes |
75 | Interior linings - FRP panels 0.125" | FRP | General | R1 | Pass | NA | No | Yes |
76 | Interior linings - Mel/al faced plymetal 12.9mm | Sandwich | General | R1 | Pass | NA | No | Yes |
77 | Interior linings - Mel/al/al faced plymetal 10mm | Sandwich | General | R1 | Pass | NA | No | Yes |
78 | Interior linings - FRP | FRP | General | R1 | Pass | NA | No | Yes |
79 | Interior linings - Phenolic composite 3mm | FRP | General | R1 | Pass | NA | No | Yes |
80 | Interior linings - window masks - FRP | FRP | General | R1 | Pass | NA | No | Yes |
81 | Interior Panel - Melamine honeycomb core alum | Sandwich | General | R1 | Pass | NA | No | Yes |
82 | Interior Panels, Seating Components -Phenolic/FRP Composite | FRP | Seat | R6 | Pass | NA | No | Yes |
83 | Laminate - 1/4" FRP w/ Gelcoat | FRP | General | R1 | Pass | NA | No | Yes |
84 | Laminate - 1/8" FRP w/ Gelcoat | FRP | General | R1 | Pass | NA | No | Yes |
85 | Laminate - HPL Laminated Plywood (Elec Locker) | Sandwich | General | R1 | Pass | NA | No | Yes |
86 | Laminate - FRP w/ Gelcoat | Sandwich | General | R1 | Pass | NA | No | Yes |
87 | Laminate - HPL (High Ceiling Panel) | Sandwich | General | R1 | Pass | NA | No | Yes |
88 | Lens Material | Thermoplastic | Light Diffuser | R4 | NA | NA | No | Yes |
89 | Lexan - Thin Gage Polycarbonate Material | Thermoplastic | Light Diffuser | R4 | Pass | NA | No | Yes |
90 | Light lens | Thermoplastic | Light Diffuser | R4 | Pass | NA | No | Yes |
91 | Light lens | Thermoplastic | Light Diffuser | R4 | Pass | NA | No | Yes |
92 | Light lens | Thermoplastic | Light Diffuser | R4 | Pass | NA | No | Yes |
93 | Light Lens | Thermoplastic | Light Diffuser | R4 | Pass | NA | No | Yes |
94 | Lighting - Polycarbonate | Thermoplastic | Light Diffuser | R4 | Pass | NA | No | Yes |
95 | Locker Lining - Haysite | Thermoset | General | R1 | Pass | NA | No | Yes |
96 | Toilet Seat | Thermoset | Toilet | R2 | Pass | NA | No | Yes |
97 | Operator Console Panels - polyester+fiberglass+Gelcoat | Sandwich | General | R1 | Pass | NA | No | Yes |
98 | Paneling - Plymetal Panel | Sandwich | General | R1 | Pass | NA | No | Yes |
99 | Paneling - 5/8" Core w. Stainless Steel Faces | Sandwich | General | R1 | NA | NA | No | Yes |
100 | Paneling - PlyMetal Panel, 0.67" Thick, 5 ply plywood core, 0.016" SS Faces | Sandwich | General | R1 | Pass | NA | No | Yes |
101 | Panels - 3/8" Melaminium | Thermoset | General | R1 | Pass | NA | No | Yes |
102 | Panels - Aluminum Honeycomb Ceiling Panel | Sandwich | General | R1 | Pass | NA | No | Yes |
103 | Plasctic Sheet Material | Thermoplastic | General | R1 | Pass | NA | No | Yes |
104 | Plasctic Sheet Material | Thermoplastic | General | R1 | Pass | NA | No | Yes |
105 | Plastic - Cab Sun Visor | Thermoplastic | General | R1 | NA | NA | No | Yes |
106 | Plastic Material | FRP | General | R1 | Pass | NA | No | Yes |
107 | Plymetal Panel - 0.5" Balanced Melamine Plymetal Sandwich Plate | Sandwich | General | R1 | Pass | NA | No | Yes |
108 | Plymetal Panel - 3/8" Thick Plymetal Sandwich Panel | Sandwich | General | R1 | Pass | NA | No | Yes |
109 | Polycarbonate - Nominal thickness 6mm | Thermoplastic | Window | R1 | Pass | NA | No | Yes |
110 | Polycarbonate | Thermoplastic | Window | R1 | Pass | NA | No | Yes |
111 | Polycarbonate Sheet | Thermoplastic | Window | R1 | Pass | NA | No | Yes |
112 | Polycarbonate Sheet | Thermoplastic | Window | R1 | Pass | NA | No | Yes |
113 | Polycarbonate Sheet | Thermoplastic | Window | R1 | Pass | NA | No | Yes |
114 | Polyetherimide | Thermoplastic | General | R1 | Pass | NA | No | Yes |
115 | PVC Acrylic | Thermoplastic | General | R1 | Pass | NA | No | Yes |
116 | PVC Acrylic | Thermoplastic | General | R1 | Pass | NA | No | Yes |
117 | Reinforced Plastic - 1/8" Nominal Fiberglass Reinforced Plastic | FRP | General | R1 | Pass | NA | No | Yes |
118 | Battery Case | Thermoplastic | Boxes | R10 | NA | NA | No | Yes |
119 | Seat Components - composites | FRP | Seat | R6 | Pass | NA | No | Yes |
120 | Seat Shell | FRP | Seat | R6 | Pass | NA | No | Yes |
121 | Seat Shell - Thermoplastic Sheet | Thermoplastic | Seat | R6 | Pass | NA | No | Yes |
122 | Seat Shell - Thermoplastic Sheet (PVC/Acrylic) | Thermoplastic | Seat | R6 | Pass | NA | No | Yes |
123 | Seat Shell (back) - Tedlar covered FRP | Thermoplastic | Seat | R6 | Pass | NA | No | Yes |
124 | Seat Shells - FRP | FRP | Seat | R6 | Pass | NA | No | Yes |
125 | Seat Shells - thermoplastic sheet | Thermoplastic | Seat | R6 | Pass | NA | No | Yes |
126 | Seat Shells - 3 mm FRP panel | FRP | Seat | R6 | Pass | NA | No | Yes |
127 | Seat Shells | Thermoplastic | Seat | R6 | Pass | NA | No | Yes |
128 | Seat Shells - FR FRP | FRP | Seat | R6 | Pass | NA | No | Yes |
129 | Sign (electronic) lens - thin gage polycarbonate 0.093" | Thermoplastic | General | R1 | Pass | NA | No | Yes |
130 | Sign face plate - Polycarbonate | Thermoplastic | General | R1 | Fail | NA | No | Yes |
131 | Silicone Impregnated Fiberglass | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
132 | Composite Panel | FRP | General | R1 | Pass | NA | No | Yes |
133 | Thermal Insulation - foam piping insulation | Foam Insulation | Insulation | R1 | Pass | NA | No | Yes |
134 | Thermal Insulation - fiber Aluminum Faced | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
135 | Thermal Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
136 | Thermal Insulation | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
137 | Thermal Insulation - Fiberglass Insulatioin | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
138 | Thermal Insulation - fiberglass | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
139 | Thermal Insulation - fiberglass | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
140 | Thermal Insulation - Duct Board | Fiber Insulation | Insulation | R1 | Pass | NA | No | Yes |
141 | Thermal Insulation - Foam for stainless door cores | Foam Insulation | Insulation | R1 | Fail | NA | No | Yes |
142 | Thermoplastic Material | Thermoplastic | General | R1 | Pass | NA | No | Yes |
143 | Thermoplastic Material | Thermoplastic | General | R1 | Pass | NA | No | Yes |
144 | Thermoplastic Material | Thermoplastic | General | R1 | Pass | NA | No | Yes |
145 | Thermoplastic Sheet | Thermoplastic | General | R1 | Pass | NA | No | Yes |
146 | Toilet module - FRP Direction reinf 1/4" | FRP | Toilet | R2 | Pass | NA | No | Yes |
147 | Toilet module - FRP directional reinf 11.6mm | Sandwich | Toilet | R2 | Pass | NA | No | Yes |
148 | Toilet Module Floor - Gelcoat FRP Endcap Material | FRP | Toilet | R2 | Pass | NA | No | Yes |
149 | Toilet module M8 - FRP | FRP | Toilet | R2 | Pass | NA | No | Yes |
150 | Toilet seat | Thermoset | Toilet | R2 | Pass | NA | No | Yes |
151 | Toilet Sink Counter top - FRP 17mm Thick | FRP | Toilet | R2 | Pass | NA | No | Yes |
152 | U/F box covers - 2.5mm FRP Laminate | FRP | Boxes | R10 | NA | NA | No | Yes |
153 | FRP | FRP | General | R1 | Pass | NA | No | Yes |
154 | Weather seal - Adhesive Neoprene Foam | Foam Insulation | Insulation | R1 | Pass | NA | No | Yes |
155 | Window Glass | Glass | Window | R1 | Pass | NA | No | Yes |
156 | Window glazing - Cab Windshield, 9/16 safety glass | Glass | Window | R1 | Pass | NA | No | Yes |
157 | Window glazing - Polycarbonate | Thermoplastic | Window | R1 | Pass | NA | No | Yes |
158 | Window glazing | Thermoplastic | Window | R1 | Pass | NA | No | Yes |
159 | Window glazing - Passenger safety glass 1/4" | Glass | Window | R1 | Pass | NA | No | Yes |
160 | Window glazing - Polycarbonate sheet | Thermoplastic | Window | R1 | Pass | NA | No | Yes |
161 | Windshield Glass - Windshield Composite | Glass | Window | R1 | Pass | NA | No | Yes |
162 | Nomex Rail Panel | Sandwich | General | R1 | Pass | NA | No | Yes |
163 | Plywood Rail Panel | Sandwich | General | R1 | Pass | NA | No | Yes |
164 | FRP Panel | FRP | General | R1 | Pass | NA | No | Yes |
165 | Plywood rail panel - Melaminium face, plywood core, aluminum backer | Sandwich | General | R1 | NA | NA | No | Yes |
166 | Phenolic resin (preimpregnated + honeycomb+ preimpregnated) (1mm+2mm+1mm thick), Fiberglass(30mm), Aluminium(3mm) | Sandwich | General | R1 | NA | NA | No | No |
167 | Compact panel with bands and edges in aluminum | Sandwich | General | R1 | NA | NA | No | No |
168 | Phenolic resin (preimpregnated+ honeycomb+preimpregnated)(1mm+2mm+1mm thick), Fiberglass(30mm), Aluminium(3mm) | Sandwich | General | R1 | NA | NA | No | No |
169 | Film self adhesive bonded to Al sheet | Sandwich | General | R1 | NA | NA | No | No |
170 | Flame retarded glass reinforced unsaturated polyester | FRP | General | R1 | NA | NA | No | No |
171 | Glass mat | FRP | General | R1 | NA | NA | No | No |
172 | Glass reinforced unsaturated polyester | FRP | General | R1 | NA | NA | No | No |
173 | Glass reinforced unsaturated polyester | FRP | General | R1 | NA | NA | No | No |
174 | Mica paper on silicon rasin | FRP | General | R1 | NA | NA | No | No |
175 | Polycarbonate (10% glass fibre) | FRP | General | R1 | NA | NA | No | No |
176 | Polycarbonate | Thermoplastic | Windscreen | R1 | NA | NA | No | No |
177 | Polyvinyl chloride (PVC) | Thermoplastic | General | R1 | NA | NA | No | No |
178 | Pultruded glass reinforced polyester | FRP | General | R1 | NA | NA | No | No |
179 | 1 mm HPL laminate on 18 mm plywood (548 kg/m^3) | Sandwich | General | R1 | NA | NA | No | No |
180 | 1.6 mm metal laminate on 18 mm plywood (648kg/m^3) | Sandwich | General | R1 | NA | NA | No | No |
181 | Wood Table with HPL laminate on top (616 kg/m^3) | Sandwich | Table | R2 | NA | NA | No | No |
182 | GRP (polyester gelcoat & hand-laminated glass fibres/polyester/mineral filler composite) | FRP | General | R1 | NA | NA | No | No |
183 | 3 mm thick PPS/glass fiber panels | FRP | General | R1 | NA | NA | No | No |
184 | Air Duct - Neoprene | Foam Insulation | Insulation | R1 | NA | NA | No | No |
185 | Café/Lounge Table - Phenolic/wood laminate | Sandwich | Table | R2 | Pass | NA | No | No |
186 | Pipe insulation - foam | Foam Insulation | Insulation | R1 | Pass | NA | No | No |
187 | Seat Shroud - PVC/Acrylic | Thermoplastic | Seat | R6 | Pass | NA | No | No |
188 | Space Divider - Polycarbonate | Thermoplastic | Windscreen | R1 | Pass | NA | No | No |
189 | Wall Finishing - Wool Carpet | Sandwich | General | R1 | Pass | NA | No | No |
190 | Wall Finishing - Wool Fabric | Sandwich | General | R1 | NA | NA | No | No |
191 | Wall Material - FRP/PVC | Thermoplastic | General | R1 | Pass | NA | No | No |
192 | Wall Panel - FRP | FRP | General | R1 | Pass | NA | No | No |
193 | Window Mask - FRP | FRP | General | R1 | NA | NA | No | No |
194 | Window Glazing - polycarbonate | Thermoplastic | Window | R1 | Pass | NA | No | No |
195 | Thermoplastic | Thermoplastic | General | R1 | Pass | NA | No | No |
196 | Sandwich plywood panel | Sandwich | General | R1 | Pass | NA | No | No |
197 | Sandwich balsa panel | Sandwich | General | R1 | Pass | NA | No | No |
198 | Plastic light diffuser | Thermoplastic | Light Diffuser | R4 | NA | NA | No | No |
199 | Wall Panel | Thermoplastic | General | R1 | Pass | NA | No | No |
200 | FRP | FRP | General | R1 | Pass | NA | No | No |
201 | FRP | FRP | General | R1 | Pass | NA | No | No |
202 | Polycarbonate Window | Thermoplastic | Window | R1 | NA | NA | No | No |
203 | Seat Material | Thermoplastic | Seat | R6 | NA | NA | No | No |
204 | Back of Seat | Thermoplastic | Seat | R6 | Pass | NA | No | No |
205 | Armrest | Thermoplastic | Seat | R6 | Pass | NA | No | No |
206 | Window | Thermoplastic | Window | R1 | Pass | NA | No | No |
207 | Printed Wall Lining | Thermoset | General | R1 | Pass | NA | No | No |
208 | Aisle Light Diffuser | Thermoplastic | Light Diffuser | R4 | Pass | NA | No | No |
209 | Ad Board | Thermoplastic | General | R1 | Pass | NA | No | No |
210 | Brown Ceiling Panel | Thermoset | General | R1 | Pass | NA | No | No |
211 | Brown Wall Lining | Thermoset | General | R1 | Pass | NA | No | No |
212 | Ceiling Panel | Sandwich | General | R1 | Pass | NA | No | No |
213 | Passenger Sidewall/Window Mask | Thermoplastic | General | R1 | Pass | NA | No | No |
214 | Back of Seat | Thermoplastic | Seat | R2 | Pass | NA | No | No |
215 | Toilet Wall | FRP | Toilet | R2 | Pass | NA | No | No |
216 | Toilet Partition | FRP | Toilet | R2 | Pass | NA | No | No |
217 | Central Panel | Sandwich | General | R1 | Pass | NA | No | No |
218 | Cove Panel | Thermoplastic | General | R1 | Pass | NA | No | No |
219 | Console Panel | FRP | General | R1 | Pass | NA | No | No |
220 | GRP Wall Panel | FRP | General | R1 | NA | NA | No | No |
221 | Window | Thermoplastic | Window | R1 | NA | NA | No | No |
222 | Ceiling Wall Panel | Sandwich | General | R1 | NA | NA | No | No |
223 | Seat | FRP | Seat | R2 | NA | NA | No | No |
224 | GRP Window Mask | FRP | General | R1 | Pass | NA | No | No |
225 | GRP Seating | FRP | Seat | R2 | Pass | NA | No | No |
226 | Ceiling Panels | Sandwich | General | R1 | Pass | NA | No | No |
227 | Ply-Metal | Sandwich | General | R1 | Pass | NA | No | No |
228 | Light Diffuser | Thermoplastic | Light Diffuser | R4 | Pass | NA | No | No |
229 | Polycarbonate Windscreen | Thermoplastic | Windscreen | R1 | Pass | NA | No | No |
230 | Polycarbonate Window | Thermoplastic | Window | R1 | Pass | NA | No | No |
231 | Melamine Aluminum | Sandwich | General | R1 | Pass | NA | No | No |
232 | Polycarbonate Sheet | Thermoplastic | Windscreen | R1 | NA | NA | No | No |
233 | Polyester GRP | FRP | General | R1 | NA | NA | No | No |
234 | Polyester GRP | FRP | General | R1 | NA | NA | No | No |
235 | Melamine formaldehyde, phenol formaldehyde laminate | Thermoset | General | R1 | NA | NA | No | No |
236 | Phenolic-GRP painted | FRP | General | R1 | NA | NA | No | No |
237 | Brominated Resin with 20-30% glass GRP with ATH | FRP | General | R1 | Fail | NA | No | Yes |
238 | Brominated Resin with 20-30% glass GRP with ATH | FRP | General | R1 | Pass | NA | No | Yes |
239 | Brominated Resin with 20-30% glass GRP with ATH | FRP | General | R1 | Fail | NA | No | Yes |
240 | Brominated Resin with 20-30% glass GRP with ATH | FRP | General | R1 | Fail | NA | No | Yes |
241 | Brominated Resin with 20-30% glass GRP with no ATH | FRP | General | R1 | NA | NA | No | Yes |
242 | Brominated Resin with 20-30% glass GRP with no ATH | FRP | General | R1 | Fail | NA | No | Yes |
243 | Resin with 20-30% glass GRP with ATH | FRP | General | R1 | Pass | NA | No | Yes |
244 | Resin with 20-30% glass GRP with ATH | FRP | General | R1 | Pass | NA | No | Yes |
245 | Resin with 20-30% glass GRP with ATH | FRP | General | R1 | Pass | NA | No | Yes |
246 | Luggage Rack Door, plastic face honeycomb core | Sandwich | General | R1 | Pass | NA | No | No |
247 | Luggage Rack Filler Panel | Thermoplastic | General | R1 | Pass | NA | No | No |
248 | Partition Tedlar, toilet wall | Thermoplastic | Toilet | R2 | Pass | NA | No | No |
249 | Luggage Tower Carpet | Fiberous Lining | General | R1 | Pass | NA | No | No |
250 | Polycarbonate, windows/windscreen | Thermoplastic | Window | R1 | Pass | NA | No | No |
251 | Polycarbonate, light diffusers | Thermoplastic | Light Diffuser | R4 | Pass | NA | No | No |
252 | Melamine on Aluminum, ceiling / cove panels | Sandwich | General | R1 | Pass | NA | No | No |
253 | Melamine on Aluminum Honeycomb, ceiling panel | Sandwich | General | R1 | Pass | NA | No | No |
254 | Tedlar covered FRP, seat backshell | FRP | Seat | R2 | Pass | NA | No | No |
255 | Tedlar covered FRP, window mask | FRP | General | R1 | Pass | NA | No | No |
256 | Melamine faced aluminum plymetal, walls | Sandwich | General | R1 | Pass | NA | No | No |
257 | FRP Sandwich, toilet walls | Sandwich | Toilet | R2 | Pass | NA | No | No |
258 | FRP Toilet ceiling | FRP | Toilet | R2 | Pass | NA | No | No |
259 | Wall panel | Thermoplastic | General | R1 | Pass | NA | No | Yes |
260 | Wall panel | Thermoplastic | General | R1 | Pass | NA | No | Yes |
261 | Wall panel | Thermoplastic | General | R1 | Pass | NA | No | Yes |
262 | Casted Foamed Plastic | Thermoset | General | R1, R2, R7 | NA | NA | No | Yes |
263 | Casted Foamed Plastic | Thermoset | General | R1, R2, R7 | NA | NA | No | Yes |
264 | Casted Foamed Plastic | Thermoset | General | R1, R2, R7 | NA | NA | No | Yes |
265 | Casted Foamed Plastic | Thermoset | General | R1, R2, R7 | NA | NA | No | Yes |
266 | Polycarbonate Sheet | Thermoplastic | Windscreen | R1 | NA | NA | No | No |
267 | Silicone Rubber | Foam Insulation | Insulation | R1 | NA | NA | No | No |
268 | Fiber reinforced plastic | FRP | General | R1 | NA | NA | No | No |
269 | Densified wood | Wood | General | R1 | NA | NA | No | No |
270 | Ultem Sheet (PEI) (2.6-4 mm) | Thermoplastic | General | R1, R6 | Pass | Pass (HL3) | Yes | Yes |
271 | Polycarbonate & FR Blends - H6500 (3-4 mm) | Thermoplastic | General | R1, R6 | Pass | Pass (HL2) | Yes | Yes |
272 | Polycarbonate FR - F2000 (2-4 mm) | Thermoplastic | General | R4 | Pass | Pass (HL3) | Yes | Yes |
273 | Polycarbonate Opaque Resin Lexan FST3403 (3mm) | Thermoplastic | General | R6 | NA | Pass (HL3) | No | Yes |
274 | Polycarbonate Opaque Resin Lexan FST3002 (3mm) | Thermpoplastic | General | R6 | NA | Pass (HL2) | No | Yes |
275 | Noryl NH6010B (2 mm) | Thermoplastic | General | R1,R6 | NA | Pass (HL3) | No | Yes |
276 | Noryl NH6010B (3-4 mm) | Thermoplastic | General | R1 | NA | Pass (HL1) | No | Yes |
277 | Noryl NH6010B (1.5 mm) | Thermoplastic | General | R1 | Pass | NA | No | Yes |
278 | Lexan EX9332T (2-3 mm) | Thermoplastic | General | R4 | NA | Pass (HL3) | No | Yes |
279 | Lexan EFXD9332T WH 1G003X (2-3 mm) | Thermoplastic | General | R4 | NA | Pass (HL3) | No | Yes |
280 | Lexan 2034 (2-3 mm) | Thermoplastic | General | R4 | NA | Pass (HL3) | No | Yes |
281 | Lexan 945AU (2-3 mm) | Thermoplastic | General | R4 | NA | Pass (HL3) | No | Yes |
282 | Armaflex Rail SD | Foam Insulation | General | R1 | Pass | Pass (HL2) | Yes | Yes |
283 | Armaflex Rail SD (3mm sheets & tape) | Foam Insulation | General | R1 | NA | Pass (HL3) | No | Yes |
284 | Armaflex Rail SD-C | Foam Insulation | General | R1 | Pass | Pass (HL3) | Yes | Yes |
285 | Armaflex Rail ZH | Foam Insulation | General | R1 | NA | Pass (HL2) | No | Yes |
286 | Armaflex Rail ZH-C | Foam Insulation | General | R1 | NA | Pass (HL3) | No | Yes |
287 | Train Climaver | Sandwich | HVAC Duct | R1 | NA | Pass (HL3) | No | Yes |
288 | TDS Train Climaver | Sandwich | HVAC Duct | R1 | NA | Pass (HL3) | No | Yes |
289 | Train Liner 5mm Roll | Fiber Insulation | Insulation | R1 | NA | Pass (HL3) | No | Yes |
290 | Train Liner Slab Cleantec | Sandwich | HVAC Duct | R1 | NA | Pass (HL3) | No | Yes |
291 | Kydex 2210LT | Thermoplastic | General | R1, R6 | NA | Pass (HL2) | No | Yes |
292 | Kydex 2200LT | Thermoplastic | General | R1, R6 | Pass | NA | No | Yes |
293 | Kydex 6200 | Thermoplastic | General | R1, R6 | Pass | NA | No | Yes |
294 | Aluwood - aluminum panel with HPL surface | Sandwich | General | R1 | NA | Pass (HL2) | No | Yes |
295 | Armacell - Armaflex Rail SD-C, elastermic foam with aluminum fiber fabric | Insulation | Insulation | R1 | NA | Pass (HL3) | No | Yes |
296 | Armacell - Armaflex Rail ZH elastomeric foam | Insulation | Insulation | R1 | NA | Pass (HL2) | No | Yes |
297 | Armacell - Armaflex Rail ZH-C elastomic foam with alumimum fiber glass | Insulation | Insulation | R1 | NA | Pass (HL3) | No | Yes |
298 | Backa - Sprefix thermal insulation (>50mm thick) | Insulation | Insulation | R1 | NA | Pass (HL3) | No | Yes |
299 | Dansk Dekor - Etronit-M Compact Type FR (6-24 mm thick) | Thermoplastic | General | R1 | NA | Pass (HL3) | No | Yes |
300 | HBG Teknopress - Composite Panel (4 mm thick) | FRP | General | R1 | NA | Pass (HL2) | No | Yes |
301 | HBG Teknopress - Sandwich laminate (16 mm thick) | Sandwich | General | R1 | NA | Pass (HL2) | No | Yes |
302 | Isoflex - Moniflex insulation (10-20 mm thick) | Insulation | Insulation | R1 | NA | Pass (HL3) | No | Yes |
303 | Isoflex - Monflex +aluminum foil insulation (10-60 mm thick) | Insulation | Insulation | R1 | NA | Pass (HL3) | No | Yes |
304 | Isoflex - Moniflex with Glass wool w or w/o foil (30-260 mm thick) | Insulation | Insulation | R1 | NA | Pass (HL3) | No | Yes |
305 | Rica - Aluminum Honeycomb panel | Sandwich | General | R1 | NA | Pass (HL2) | No | Yes |
306 | Saertex - Monolithic FRP (2.5-8 mm thick) | FRP | General | R1 | NA | Pass (HL2) | No | Yes |
307 | Metsa Wood Phoenix (12-23 mm thick) | FRP | General | R1, R7 | NA | Pass (HL2) | No | Yes |
308 | Metsa Wood Phoenix (23-45 mm thick) | FRP | General | R1, R7 | NA | Pass (HL3) | No | Yes |
309 | Aluwood - Train Laminate film on aluminum | Sandwich | General | R1 | NA | Pass (HL3) | No | Yes |
310 | Aluwood - Train Honecomb Laminate film over aluminum honeycomb | Sandwich | General | R1 | NA | Pass (HL3) | No | Yes |
311 | Aluwood - Train Textile, aluminum with surface fabric | Sandwich | General | R1 | NA | Pass (HL2) | No | Yes |
312 | Aluwood - Train Alu Painted, aluminum with painted surface | Sandwich | General | R1 | NA | Pass (HL3) | No | Yes |
313 | Aluwood - Trainwood, aluminum with wood veneer | Sandwich | General | R1 | NA | Pass (HL3) | No | Yes |
314 | Aluwood - Train Neptun, alumimum honeycomb with HPL | Sandwich | General | R1 | NA | Pass (HL2) | No | Yes |
315 | Aluwood - Train Compact laminate, laminate panel | Thermoset | General | R1 | NA | Pass (HL2) | No | Yes |
316 | Aluwood - Train Nautic, alumin honeycomb with wood veneer | Sandwich | General | R1 | NA | Pass (HL3) | No | Yes |
317 | Dansk Dekor - Alunit interior panel, plywood and alunit (30 mm thick) | Sandwich | General | R1 | NA | Pass (HL2) | No | Yes |
318 | Dansk Dekor - Alunit Type F/HPL, aluminum with HPL both sides (2 mm thick) | Sandwich | General | R1 | NA | Pass (HL2) | No | Yes |
319 | Dansk Dekor - Alunit Type F/HPL, aluminum with HPL one side (2 mm thick) | Sandwich | General | R1 | NA | Pass (HL2) | No | Yes |
320 | Rica - Aluminum Honeycomb panel | Sandwich | General | R2 | NA | Pass (HL3) | No | Yes |
ID # | Detailed Description | Type | NFPA 130 - ASTM E162 Is (- -) | NFPA 130 - ASTM E662 Ds (1.5) (- -) | NFPA 130 - ASTM E662 Ds (4.0) (- -) | EN 45545-2 - ISO 5660-1 MARHE (kW/m2) |
---|---|---|---|---|---|---|
1 | Acoustic Insulation | Foam Insulation | 5 | 1 | 37 | |
2 | Articulation Bellows | Bellows | 8.5 | 1 | 1 | |
3 | Articulation Bellows - reinforced elastomeric compound | Bellows | 5 | 0 | 183 | |
4 | Backshell, Post Shroud, Armrest - FRP with Tedlar | FRP | 8 | 6 | 45 | |
5 | Battery case - Polysulfone | Thermoplastic | 35 | 2 | 19 | |
6 | Battery case - Polysulfone | Thermoplastic | 15 | 2 | 13 | |
7 | Battery Cell Container - Polysulfone | Thermoplastic | 7 | 2 | 7 | |
8 | Bellows - FR Bellows | Bellows | 4 | 84 | ||
9 | Cab Console - FRP + Tedlar | FRP | 8 | 6 | 45 | |
10 | Cab-Low Ceiling+Crew Locker Panel - Aluminum Honeycomb Core Panel | Sandwich | 1 | 2 | 33 | |
11 | Ceiling Ducting - Fiberglass Coated Silicone | Sandwich | 15 | 15 | 85 | |
12 | Ceiling Panel - Honeycomb Core Ceiling Panel Composite | Sandwich | 1 | 2 | 33 | |
13 | Ceiling panels - Melamine aluminum honeycomb | Sandwich | 0 | 0 | 1 | |
14 | Composite - Balsa with Phenolic Skin | Sandwich | 0 | 0 | ||
15 | Composite - GRP | FRP | 0.2 | 20 | ||
16 | Composite Laminate Material | FRP | 60 | 2 | 59 | |
17 | Composite Panel - Honeycomb Core Composite Panel | Sandwich | 1 | 1 | 2 | |
18 | Counter Splash Guard/Top+Basin - FRP Fiberglass Vinyl Ester | FRP | 35 | 1 | 3 | |
19 | Destination Sign Curtain | FRP | ||||
20 | Duct Liner | Fiber Insulation | 25.78 | 17 | 26 | |
21 | Ducting | Sandwich | 2 | 27 | 33 | |
22 | Ducting | Fiber Insulation | 1 | 1 | 1 | |
23 | Fiberglass Composite | FRP | 10 | 6 | 150 | |
24 | Fiberglass Insulation | Fiber Insulation | 5 | 2 | 2 | |
25 | Flexible Air Duct Material | Sandwich | 0 | 76 | ||
26 | Florescent Light Diffuser Lens Bathroom | Thermoplastic | 14 | 2 | 150 | |
27 | FRP - Composite 3mm | FRP | ||||
28 | FRP - Polyester Resin | FRP | 2.5 | 6 | 98 | |
29 | FRP - FRP Samples | FRP | 30 | 5 | 74 | |
30 | FRP - 1/8" Nominal Thick | FRP | 10 | 45 | 124 | |
31 | FRP | FRP | 11 | 172 | ||
32 | FRP & Gelcoat | Sandwich | 31.4 | 2 | 44 | |
33 | FRP Laminate - Console Assembly | FRP | 23 | 24 | 191 | |
34 | FRP Laminate | FRP | 25 | 7 | 46 | |
35 | FRP Laminate | FRP | 18 | 18 | 63 | |
36 | FRP Laminate - Passenger Seat Shell | FRP | 23 | 19 | 138 | |
37 | FRP Laminate | FRP | 11.94 | 4 | 6 | |
38 | FRP Laminate Composite | FRP | 1 | 28 | ||
39 | FRP Laminate Material - 1/4" FRP with Gelcoat | FRP | 10 | 4 | 71 | |
40 | FRP Laminate Material - 1/8" FRP with Gelcoat | FRP | 15 | 11 | 96 | |
41 | FRP Laminate Material - FRP with Gelcoat | FRP | 15 | 8 | 86 | |
42 | FRP Material | FRP | ||||
43 | FRP Window Mask Laminate | FRP | 32 | 52 | 136 | |
44 | FRP, Gelcoat, & Foam | Sandwich | 31.25 | 3 | 87 | |
45 | Heater Insulation (HVAC) | Fiber Insulation | ||||
46 | Honeycomb Panel - 3/8" Aluminum Honeycomb Sandwich Panel | Sandwich | 0 | 1 | 43 | |
47 | Insulated Flexible duct | Sandwich | 2 | 27 | 33 | |
48 | Insulation - Insulation 6mm | Foam Insulation | ||||
49 | Insulation | Fiber Insulation | 1.5 | 1 | 2 | |
50 | Insulation | Fiber Insulation | 2.5 | 0 | 1 | |
51 | Insulation | Fiber Insulation | ||||
52 | Insulation | Fiber Insulation | ||||
53 | Insulation - Aluminum Faced | Sandwich | ||||
54 | Insulation -foam Insulation | Foam Insulation | 5 | 54 | 93 | |
55 | Insulation - 1" Fiberglass Insulation Board | Fiber Insulation | 0 | 1 | 1 | |
56 | Insulation | Foam Insulation | 1 | 1 | 1 | |
57 | Insulation | Fiber Insulation | 2 | 1 | 1 | |
58 | Insulation | Foam Insulation | 0.4 | 0 | 1 | |
59 | Insulation | Fiber Insulation | 0 | 1 | 3 | |
60 | Insulation | Fiber Insulation | 2 | 1 | 2 | |
61 | Insulation | Fiber Insulation | 0 | 2 | 3 | |
62 | Insulation | Fiber Insulation | 2 | 0 | 1 | |
63 | Insulation | Fiber Insulation | ||||
64 | Insulation | Fiber Insulation | 0 | 7 | 9 | |
65 | Insulation - tube/sheet 1" | Foam Insulation | 6 | 63 | 93 | |
66 | Insulation | Fiber Insulation | 1 | 0 | 1 | |
67 | Insulation | Fiber Insulation | ||||
68 | Insulation | Fiber Insulation | 2.25 | 1 | 1 | |
69 | Interior lining (phone cabinet) - FRP composite 4.5mm | FRP | 3 | 8 | 20 | |
70 | Interior linings | Thermoplastic | 10 | 5 | 119 | |
71 | Interior linings - 12.5mm mel/plymetal | Sandwich | 4 | 3 | 37 | |
72 | Interior linings - moldings | Thermoplastic | 2 | 2 | 11 | |
73 | Interior linings - 3/8 alum. H/C panels | Sandwich | 1.5 | 0 | 43 | |
74 | Interior linings - FRP directional reinf 1/8" | FRP | 15 | 11 | 96 | |
75 | Interior linings - FRP panels 0.125" | FRP | 22 | 6 | 72 | |
76 | Interior linings - Mel/al faced plymetal 12.9mm | Sandwich | 2 | 0 | 35 | |
77 | Interior linings - Mel/al/al faced plymetal 10mm | Sandwich | 1 | 0 | 124 | |
78 | Interior linings - FRP | FRP | 30 | 0 | 74 | |
79 | Interior linings - Phenolic composite 3mm | FRP | 15 | 2 | 103 | |
80 | Interior linings - window masks - FRP | FRP | 32 | 0 | 136 | |
81 | Interior Panel - Melamine honeycomb core alum | Sandwich | 0 | 4 | 52 | |
82 | Interior Panels, Seating Components -Phenolic/FRP Composite | FRP | 15 | 2 | 103 | |
83 | Laminate - 1/4" FRP w/ Gelcoat | FRP | 10 | 4 | 71 | |
84 | Laminate - 1/8" FRP w/ Gelcoat | FRP | 15 | 11 | 96 | |
85 | Laminate - HPL Laminated Plywood (Elec Locker) | Sandwich | 1.34 | 8 | 43 | |
86 | Laminate - FRP w/ Gelcoat | Sandwich | 16.5 | 8 | 86 | |
87 | Laminate - HPL (High Ceiling Panel) | Sandwich | 0 | 20 | 64 | |
88 | Lens Material | Thermoplastic | ||||
89 | Lexan - Thin Gage Polycarbonate Material | Thermoplastic | 25 | 7 | 138 | |
90 | Light lens | Thermoplastic | 16.21 | 1 | 5 | |
91 | Light lens | Thermoplastic | 7 | 0 | 54 | |
92 | Light lens | Thermoplastic | 9 | 2 | 58 | |
93 | Light Lens | Thermoplastic | 86.84 | 7 | 40 | |
94 | Lighting - Polycarbonate | Thermoplastic | 1 | 1 | 2 | |
95 | Locker Lining - Haysite | Thermoset | 12.63 | 0 | 5 | |
96 | Toilet Seat | Thermoset | 20 | 0 | 8 | |
97 | Operator Console Panels - polyester+fiberglass+Gelcoat | Sandwich | 18 | 18 | 63 | |
98 | Paneling - Plymetal Panel | Sandwich | 0 | 1 | 2 | |
99 | Paneling - 5/8" Core w. Stainless Steel Faces | Sandwich | ||||
100 | Paneling - PlyMetal Panel, 0.67" Thick, 5 ply plywood core, 0.016" SS Faces | Sandwich | 5 | 1 | 3 | |
101 | Panels - 3/8" Melaminium | Thermoset | 12.24 | 0.1 | 1 | |
102 | Panels - Aluminum Honeycomb Ceiling Panel | Sandwich | 1 | 7 | 74 | |
103 | Plasctic Sheet Material | Thermoplastic | 25.5 | 5 | 130 | |
104 | Plasctic Sheet Material | Thermoplastic | 17.23 | 13 | 126 | |
105 | Plastic - Cab Sun Visor | Thermoplastic | 182 | 563 | ||
106 | Plastic Material | FRP | 5 | 25 | 109 | |
107 | Plymetal Panel - 0.5" Balanced Melamine Plymetal Sandwich Plate | Sandwich | 2 | 1 | 35 | |
108 | Plymetal Panel - 3/8" Thick Plymetal Sandwich Panel | Sandwich | 1.2 | 45 | 124 | |
109 | Polycarbonate - Nominal thickness 6mm | Thermoplastic | 47 | 1 | 102 | |
110 | Polycarbonate | Thermoplastic | 55 | 2 | 17 | |
111 | Polycarbonate Sheet | Thermoplastic | 8.58 | 10 | 81 | |
112 | Polycarbonate Sheet | Thermoplastic | 48.5 | 2 | 9 | |
113 | Polycarbonate Sheet | Thermoplastic | 35 | 2 | 8 | |
114 | Polyetherimide | Thermoplastic | 5 | 1 | 1 | |
115 | PVC Acrylic | Thermoplastic | 30 | 15 | 141 | |
116 | PVC Acrylic | Thermoplastic | 4 | 25 | 184 | |
117 | Reinforced Plastic - 1/8" Nominal Fiberglass Reinforced Plastic | FRP | 13 | 45 | 124 | |
118 | Battery Case | Thermoplastic | ||||
119 | Seat Components - composites | FRP | 25 | 0 | 13 | |
120 | Seat Shell | FRP | 19.65 | 19 | 45 | |
121 | Seat Shell - Thermoplastic Sheet | Thermoplastic | 4 | 0 | 184 | |
122 | Seat Shell - Thermoplastic Sheet (PVC/Acrylic) | Thermoplastic | 15 | 15 | 122 | |
123 | Seat Shell (back) - Tedlar covered FRP | Thermoplastic | 35 | 1 | 28 | |
124 | Seat Shells - FRP | FRP | 23 | 0 | 138 | |
125 | Seat Shells - thermoplastic sheet | Thermoplastic | 3 | 0 | 189 | |
126 | Seat Shells - 3 mm FRP panel | FRP | 8 | 0 | 63 | |
127 | Seat Shells | Thermoplastic | 17 | 0 | 126 | |
128 | Seat Shells - FR FRP | FRP | 10 | 0 | 150 | |
129 | Sign (electronic) lens - thin gage polycarbonate 0.093" | Thermoplastic | 25 | 7 | 138 | |
130 | Sign face plate - Polycarbonate | Thermoplastic | 60 | 0 | 59 | |
131 | Silicone Impregnated Fiberglass | Fiber Insulation | 5 | 4 | 33 | |
132 | Composite Panel | FRP | 25 | 1 | 13 | |
133 | Thermal Insulation - foam piping insulation | Foam Insulation | 5 | 40 | 77 | |
134 | Thermal Insulation - fiber Aluminum Faced | Fiber Insulation | 1 | 1 | 1 | |
135 | Thermal Insulation | Fiber Insulation | 2 | 0 | 1 | |
136 | Thermal Insulation | Fiber Insulation | 5 | 0 | 1 | |
137 | Thermal Insulation - Fiberglass Insulatioin | Fiber Insulation | 1 | 0 | 2 | |
138 | Thermal Insulation - fiberglass | Fiber Insulation | 5 | 0 | 1 | |
139 | Thermal Insulation - fiberglass | Fiber Insulation | 0 | 2 | 3 | |
140 | Thermal Insulation - Duct Board | Fiber Insulation | 1 | 1 | 1 | |
141 | Thermal Insulation - Foam for stainless door cores | Foam Insulation | 10 | 0 | 122 | |
142 | Thermoplastic Material | Thermoplastic | 4.5 | 25 | 184 | |
143 | Thermoplastic Material | Thermoplastic | 25 | 11 | 122 | |
144 | Thermoplastic Material | Thermoplastic | 14.3 | 32 | 68 | |
145 | Thermoplastic Sheet | Thermoplastic | 10 | 5 | 119 | |
146 | Toilet module - FRP Direction reinf 1/4" | FRP | 10 | 4 | 71 | |
147 | Toilet module - FRP directional reinf 11.6mm | Sandwich | 15 | 8 | 86 | |
148 | Toilet Module Floor - Gelcoat FRP Endcap Material | FRP | 9 | 10 | 123 | |
149 | Toilet module M8 - FRP | FRP | 25 | 0 | 76 | |
150 | Toilet seat | Thermoset | 20 | 0 | 8 | |
151 | Toilet Sink Counter top - FRP 17mm Thick | FRP | 10 | 1 | 12 | |
152 | U/F box covers - 2.5mm FRP Laminate | FRP | ||||
153 | FRP | FRP | 12 | 1 | 12 | |
154 | Weather seal - Adhesive Neoprene Foam | Foam Insulation | 15 | 0 | 15 | |
155 | Window Glass | Glass | 33 | 1 | 7 | |
156 | Window glazing - Cab Windshield, 9/16 safety glass | Glass | 64 | 0 | 6 | |
157 | Window glazing - Polycarbonate | Thermoplastic | 50 | 0 | 9 | |
158 | Window glazing | Thermoplastic | 55 | 0 | 6 | |
159 | Window glazing - Passenger safety glass 1/4" | Glass | 33 | 0 | 1 | |
160 | Window glazing - Polycarbonate sheet | Thermoplastic | 15 | 0 | 17 | |
161 | Windshield Glass - Windshield Composite | Glass | 16 | 1 | 3 | |
162 | Nomex Rail Panel | Sandwich | 3 | 4 | 90 | 76 |
163 | Plywood Rail Panel | Sandwich | 6 | 1 | 55 | 107 |
164 | FRP Panel | FRP | 8 | 1 | 28 | 86 |
165 | Plywood rail panel - Melaminium face, plywood core, aluminum backer | Sandwich | ||||
166 | Phenolic resin (preimpregnated + honeycomb+ preimpregnated) (1mm+2mm+1mm thick), Fiberglass(30mm), Aluminium(3mm) | Sandwich | 30.3 | |||
167 | Compact panel with bands and edges in aluminum | Sandwich | 40.5 | |||
168 | Phenolic resin (preimpregnated+ honeycomb+preimpregnated)(1mm+2mm+1mm thick), Fiberglass(30mm), Aluminium(3mm) | Sandwich | 45.7 | |||
169 | Film self adhesive bonded to Al sheet | Sandwich | ||||
170 | Flame retarded glass reinforced unsaturated polyester | FRP | ||||
171 | Glass mat | FRP | ||||
172 | Glass reinforced unsaturated polyester | FRP | ||||
173 | Glass reinforced unsaturated polyester | FRP | ||||
174 | Mica paper on silicon rasin | FRP | ||||
175 | Polycarbonate (10% glass fibre) | FRP | ||||
176 | Polycarbonate | Thermoplastic | ||||
177 | Polyvinyl chloride (PVC) | Thermoplastic | ||||
178 | Pultruded glass reinforced polyester | FRP | ||||
179 | 1 mm HPL laminate on 18 mm plywood (548 kg/m^3) | Sandwich | ||||
180 | 1.6 mm metal laminate on 18 mm plywood (648kg/m^3) | Sandwich | ||||
181 | Wood Table with HPL laminate on top (616 kg/m^3) | Sandwich | ||||
182 | GRP (polyester gelcoat & hand-laminated glass fibres/polyester/mineral filler composite) | FRP | ||||
183 | 3 mm thick PPS/glass fiber panels | FRP | ||||
184 | Air Duct - Neoprene | Foam Insulation | 86.4 | |||
185 | Café/Lounge Table - Phenolic/wood laminate | Sandwich | 29 | 19 | 91 | 109.5 |
186 | Pipe insulation - foam | Foam Insulation | 7 | 44 | 53 | 61.3 |
187 | Seat Shroud - PVC/Acrylic | Thermoplastic | 4 | 22 | 152 | 92.8 |
188 | Space Divider - Polycarbonate | Thermoplastic | 56 | 1 | 12 | 177 |
189 | Wall Finishing - Wool Carpet | Sandwich | 4.5 | 37 | 101 | 387.1 |
190 | Wall Finishing - Wool Fabric | Sandwich | 100 | 163 | 282.9 | |
191 | Wall Material - FRP/PVC | Thermoplastic | 4 | 22 | 152 | 90.8 |
192 | Wall Panel - FRP | FRP | 3.1 | 29 | 129 | 134.9 |
193 | Window Mask - FRP | FRP | 4 | 96.9 | ||
194 | Window Glazing - polycarbonate | Thermoplastic | 56 | 2 | 72 | 172.8 |
195 | Thermoplastic | Thermoplastic | 5 | 154.1 | ||
196 | Sandwich plywood panel | Sandwich | 15 | 78 | ||
197 | Sandwich balsa panel | Sandwich | 5 | 69.3 | ||
198 | Plastic light diffuser | Thermoplastic | 180 | 587.2 | ||
199 | Wall Panel | Thermoplastic | 5 | 133.2 | ||
200 | FRP | FRP | 5 | 82.8 | ||
201 | FRP | FRP | 0 | 43.4 | ||
202 | Polycarbonate Window | Thermoplastic | 221.1 | |||
203 | Seat Material | Thermoplastic | 75.5 | |||
204 | Back of Seat | Thermoplastic | 41.7 | |||
205 | Armrest | Thermoplastic | 32.9 | |||
206 | Window | Thermoplastic | 115.7 | |||
207 | Printed Wall Lining | Thermoset | 121.4 | |||
208 | Aisle Light Diffuser | Thermoplastic | 176.9 | |||

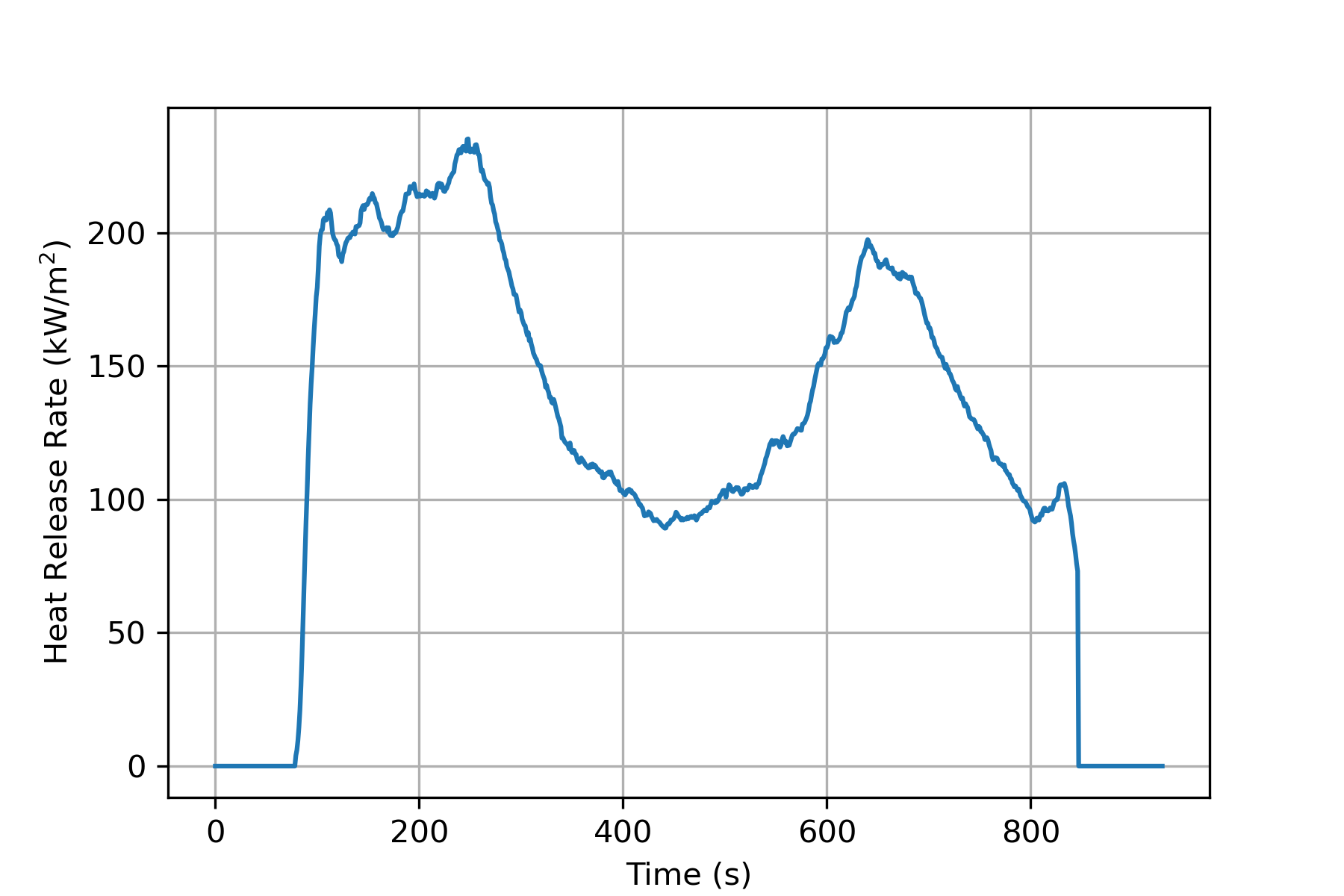

209 | Ad Board | Thermoplastic | 149.5 | |||
210 | Brown Ceiling Panel | Thermoset | 157 | |||
211 | Brown Wall Lining | Thermoset | 85.6 | |||
212 | Ceiling Panel | Sandwich | 114.6 | |||
213 | Passenger Sidewall/Window Mask | Thermoplastic | 168.7 | |||
214 | Back of Seat | Thermoplastic | 122.7 | |||
215 | Toilet Wall | FRP | 98 | |||
216 | Toilet Partition | FRP | 62.1 | |||
217 | Central Panel | Sandwich | 73.9 | |||

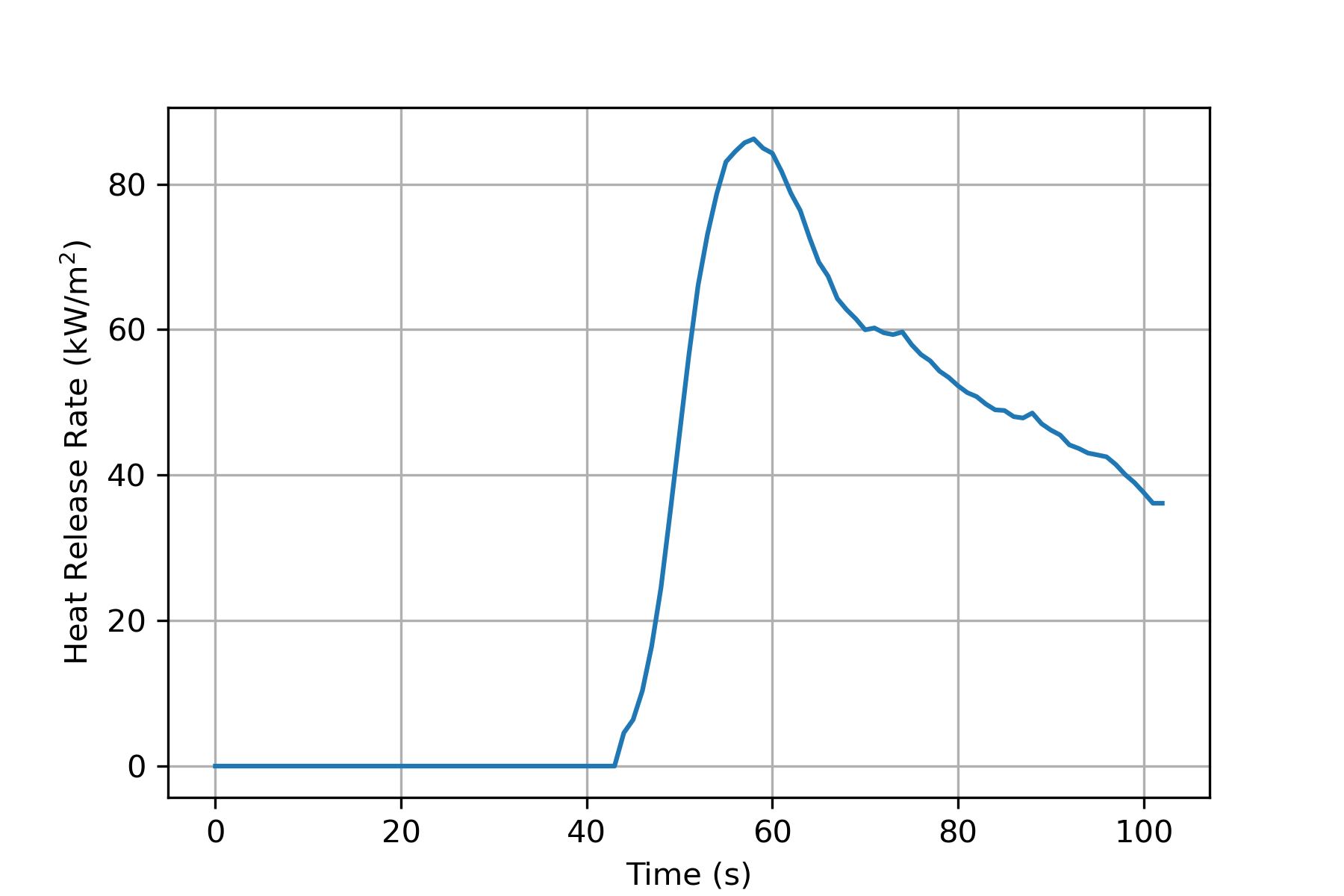

218 | Cove Panel | Thermoplastic | 29.6 | |||
219 | Console Panel | FRP | 138.9 | |||
220 | GRP Wall Panel | FRP | 81.1 | |||
221 | Window | Thermoplastic | 141.3 | |||
222 | Ceiling Wall Panel | Sandwich | 123 | |||
223 | Seat | FRP | 68.7 | |||
224 | GRP Window Mask | FRP | 195.6 | |||
225 | GRP Seating | FRP | 196.9 | |||
226 | Ceiling Panels | Sandwich | 46.4 | |||
227 | Ply-Metal | Sandwich | 89.6 | |||
228 | Light Diffuser | Thermoplastic | 267.2 | |||
229 | Polycarbonate Windscreen | Thermoplastic | 200.6 | |||
230 | Polycarbonate Window | Thermoplastic | 219.8 | |||
231 | Melamine Aluminum | Sandwich | 66 | |||
232 | Polycarbonate Sheet | Thermoplastic | 230 | |||
233 | Polyester GRP | FRP | 89.4 | |||
234 | Polyester GRP | FRP | 137.4 | |||
235 | Melamine formaldehyde, phenol formaldehyde laminate | Thermoset | 57.3 | |||
236 | Phenolic-GRP painted | FRP | 37.9 | |||
237 | Brominated Resin with 20-30% glass GRP with ATH | FRP | 15 | 26 | 420 | 88.6 |
238 | Brominated Resin with 20-30% glass GRP with ATH | FRP | 5 | 1.9 | 170 | 85.3 |
239 | Brominated Resin with 20-30% glass GRP with ATH | FRP | 10 | 7.6 | 230 | 70 |
240 | Brominated Resin with 20-30% glass GRP with ATH | FRP | 5 | 9.7 | 580 | 80.4 |
241 | Brominated Resin with 20-30% glass GRP with no ATH | FRP | ||||

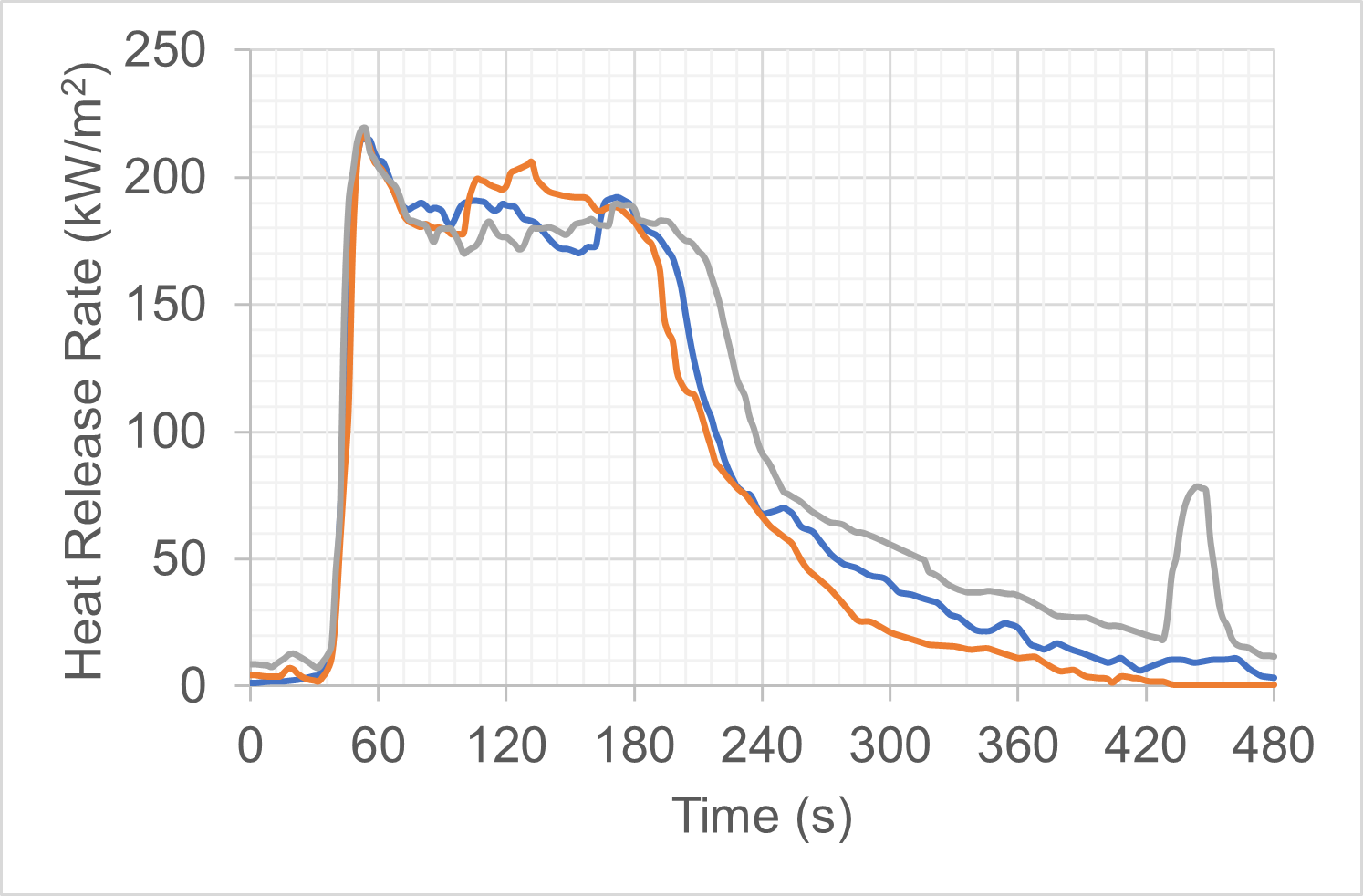

242 | Brominated Resin with 20-30% glass GRP with no ATH | FRP | 40 | 230 | 710 | 148.1 |
243 | Resin with 20-30% glass GRP with ATH | FRP | 10 | 0 | 6 | 105.9 |
244 | Resin with 20-30% glass GRP with ATH | FRP | 10 | 0.7 | 24 | 79.7 |
245 | Resin with 20-30% glass GRP with ATH | FRP | 15 | 2 | 58 | 95.7 |
246 | Luggage Rack Door, plastic face honeycomb core | Sandwich | 66.3 | |||
247 | Luggage Rack Filler Panel | Thermoplastic | 200.2 | |||
248 | Partition Tedlar, toilet wall | Thermoplastic | 100.9 | |||
249 | Luggage Tower Carpet | Fiberous Lining | 52.3 | |||
250 | Polycarbonate, windows/windscreen | Thermoplastic | 163.1 | |||
251 | Polycarbonate, light diffusers | Thermoplastic | 192.3 | |||
252 | Melamine on Aluminum, ceiling / cove panels | Sandwich | 25.4 | |||
253 | Melamine on Aluminum Honeycomb, ceiling panel | Sandwich | 89.5 | |||
254 | Tedlar covered FRP, seat backshell | FRP | 148.7 | |||
255 | Tedlar covered FRP, window mask | FRP | 89.2 | |||
256 | Melamine faced aluminum plymetal, walls | Sandwich | 91.9 | |||
257 | FRP Sandwich, toilet walls | Sandwich | 142.7 | |||
258 | FRP Toilet ceiling | FRP | 142.6 | |||
259 | Wall panel | Thermoplastic | 78.5 | |||
260 | Wall panel | Thermoplastic | 77.9 | |||
261 | Wall panel | Thermoplastic | 30 | 107.3 | ||
262 | Casted Foamed Plastic | Thermoset | 104 | |||
263 | Casted Foamed Plastic | Thermoset | 76.7 | |||

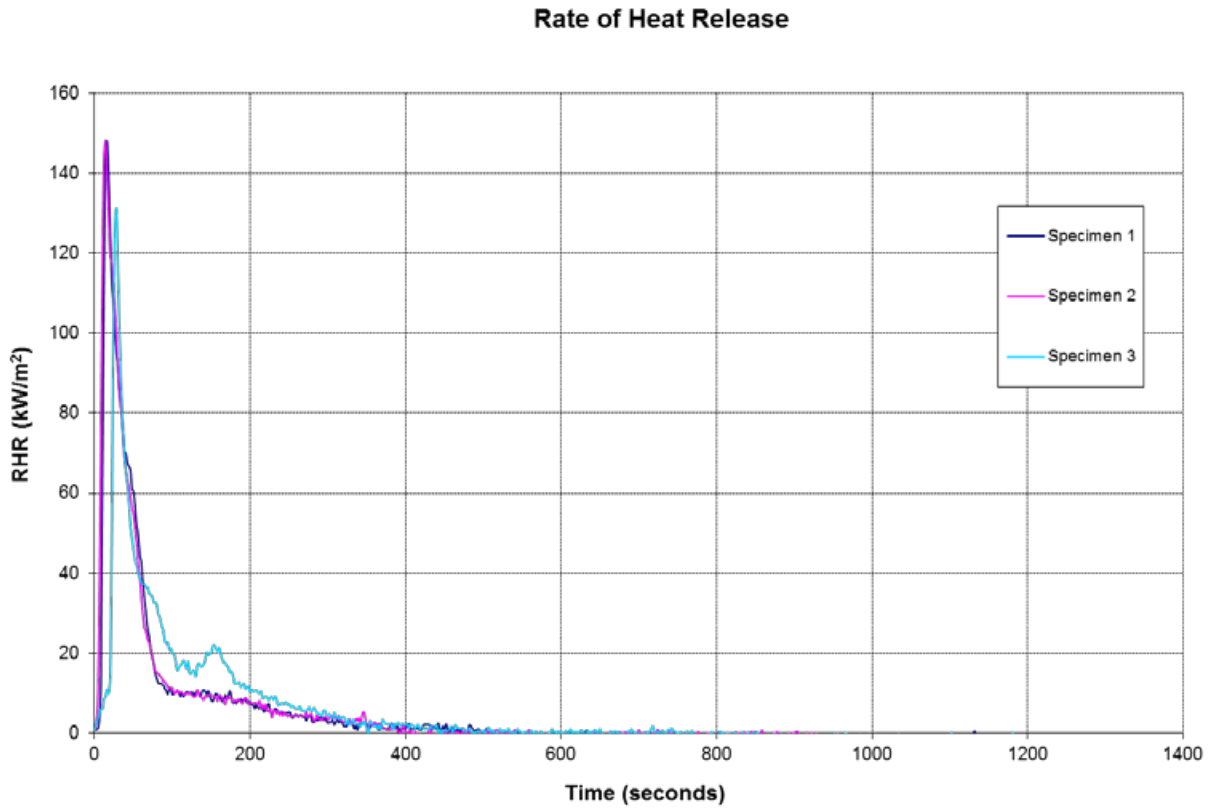

264 | Casted Foamed Plastic | Thermoset | 74.6 | |||
265 | Casted Foamed Plastic | Thermoset | 77.2 | |||
266 | Polycarbonate Sheet | Thermoplastic | 230 | |||
267 | Silicone Rubber | Foam Insulation | 86.8 | |||
268 | Fiber reinforced plastic | FRP | 141 | |||
269 | Densified wood | Wood | 141 | |||
270 | Ultem Sheet (PEI) (2.6-4 mm) | Thermoplastic | ||||
271 | Polycarbonate & FR Blends - H6500 (3-4 mm) | Thermoplastic | ||||
272 | Polycarbonate FR - F2000 (2-4 mm) | Thermoplastic | ||||
273 | Polycarbonate Opaque Resin Lexan FST3403 (3mm) | Thermoplastic | ||||
274 | Polycarbonate Opaque Resin Lexan FST3002 (3mm) | Thermpoplastic | ||||
275 | Noryl NH6010B (2 mm) | Thermoplastic | ||||
276 | Noryl NH6010B (3-4 mm) | Thermoplastic | ||||
277 | Noryl NH6010B (1.5 mm) | Thermoplastic | ||||
278 | Lexan EX9332T (2-3 mm) | Thermoplastic | ||||
279 | Lexan EFXD9332T WH 1G003X (2-3 mm) | Thermoplastic | ||||
280 | Lexan 2034 (2-3 mm) | Thermoplastic | ||||
281 | Lexan 945AU (2-3 mm) | Thermoplastic | ||||
282 | Armaflex Rail SD | Foam Insulation | ||||
283 | Armaflex Rail SD (3mm sheets & tape) | Foam Insulation | ||||
284 | Armaflex Rail SD-C | Foam Insulation | ||||
285 | Armaflex Rail ZH | Foam Insulation | ||||
286 | Armaflex Rail ZH-C | Foam Insulation | ||||
287 | Train Climaver | Sandwich | ||||
288 | TDS Train Climaver | Sandwich | ||||
289 | Train Liner 5mm Roll | Fiber Insulation | ||||
290 | Train Liner Slab Cleantec | Sandwich | ||||
291 | Kydex 2210LT | Thermoplastic | ||||
292 | Kydex 2200LT | Thermoplastic | ||||
293 | Kydex 6200 | Thermoplastic | ||||
294 | Aluwood - aluminum panel with HPL surface | Sandwich | ||||
295 | Armacell - Armaflex Rail SD-C, elastermic foam with aluminum fiber fabric | Insulation | ||||
296 | Armacell - Armaflex Rail ZH elastomeric foam | Insulation | ||||
297 | Armacell - Armaflex Rail ZH-C elastomic foam with alumimum fiber glass | Insulation | ||||
298 | Backa - Sprefix thermal insulation (>50mm thick) | Insulation | ||||
299 | Dansk Dekor - Etronit-M Compact Type FR (6-24 mm thick) | Thermoplastic | ||||
300 | HBG Teknopress - Composite Panel (4 mm thick) | FRP | ||||
301 | HBG Teknopress - Sandwich laminate (16 mm thick) | Sandwich | ||||
302 | Isoflex - Moniflex insulation (10-20 mm thick) | Insulation | ||||
303 | Isoflex - Monflex +aluminum foil insulation (10-60 mm thick) | Insulation | ||||
304 | Isoflex - Moniflex with Glass wool w or w/o foil (30-260 mm thick) | Insulation | ||||
305 | Rica - Aluminum Honeycomb panel | Sandwich | ||||
306 | Saertex - Monolithic FRP (2.5-8 mm thick) | FRP | ||||
307 | Metsa Wood Phoenix (12-23 mm thick) | FRP | ||||
308 | Metsa Wood Phoenix (23-45 mm thick) | FRP | ||||
309 | Aluwood - Train Laminate film on aluminum | Sandwich | ||||
310 | Aluwood - Train Honecomb Laminate film over aluminum honeycomb | Sandwich | ||||
311 | Aluwood - Train Textile, aluminum with surface fabric | Sandwich | ||||
312 | Aluwood - Train Alu Painted, aluminum with painted surface | Sandwich | ||||
313 | Aluwood - Trainwood, aluminum with wood veneer | Sandwich | ||||
314 | Aluwood - Train Neptun, alumimum honeycomb with HPL | Sandwich | ||||
315 | Aluwood - Train Compact laminate, laminate panel | Thermoset | ||||
316 | Aluwood - Train Nautic, alumin honeycomb with wood veneer | Sandwich | ||||
317 | Dansk Dekor - Alunit interior panel, plywood and alunit (30 mm thick) | Sandwich | ||||
318 | Dansk Dekor - Alunit Type F/HPL, aluminum with HPL both sides (2 mm thick) | Sandwich | ||||
319 | Dansk Dekor - Alunit Type F/HPL, aluminum with HPL one side (2 mm thick) | Sandwich | ||||
320 | Rica - Aluminum Honeycomb panel | Sandwich |
